Low-power, long-range IoT infrastructure that connects cities and industries.

DT provides an integrated IoT ecosystem that connects cities and industries through LoRaWAN technology. Using low-power, long-range communication, the system enables real-time monitoring and control while minimizing infrastructure costs. This scalable and efficient smart network solution can be applied across various sectors including environmental management, safety, and energy to build a more connected and sustainable future.

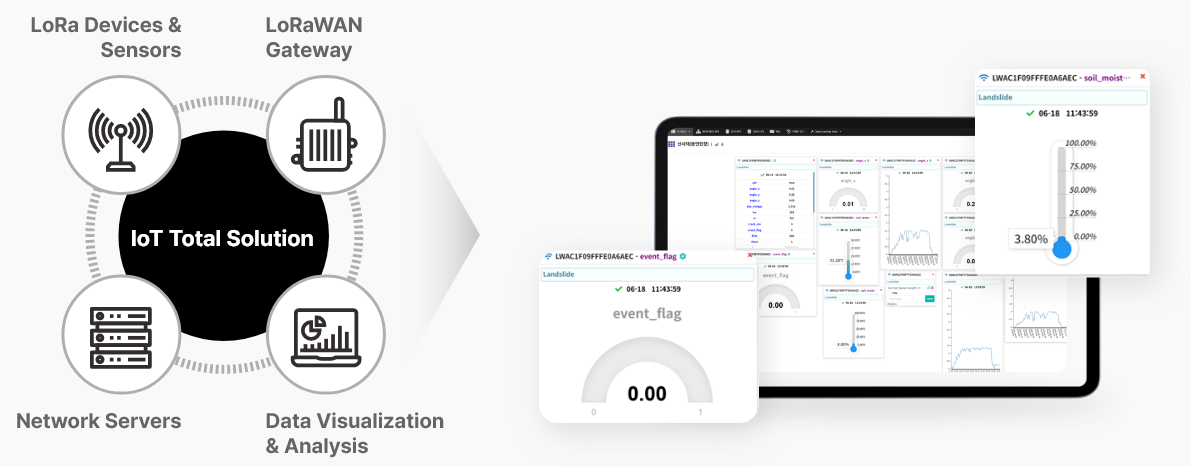

IoT Total Solution

DT’s IoT solution guarantees secure, real-time delivery of all data traffic without delays

Seamlessly connecting all things and systems, DT’s end-to-end solution automates environmental data collection and transforms multi-device data into time and cost savings, boosting operational performance From smart appliances to industrial equipment, our solution applies across diverse fields to deliver a truly smart environment

Innovating Simplicity

Prioritizing a user-friendly interface, our solution is designed for effortless adoption, management, and maintenance by anyone
Designed around user convenience, the system delivers a seamless and intuitive experience at every stage

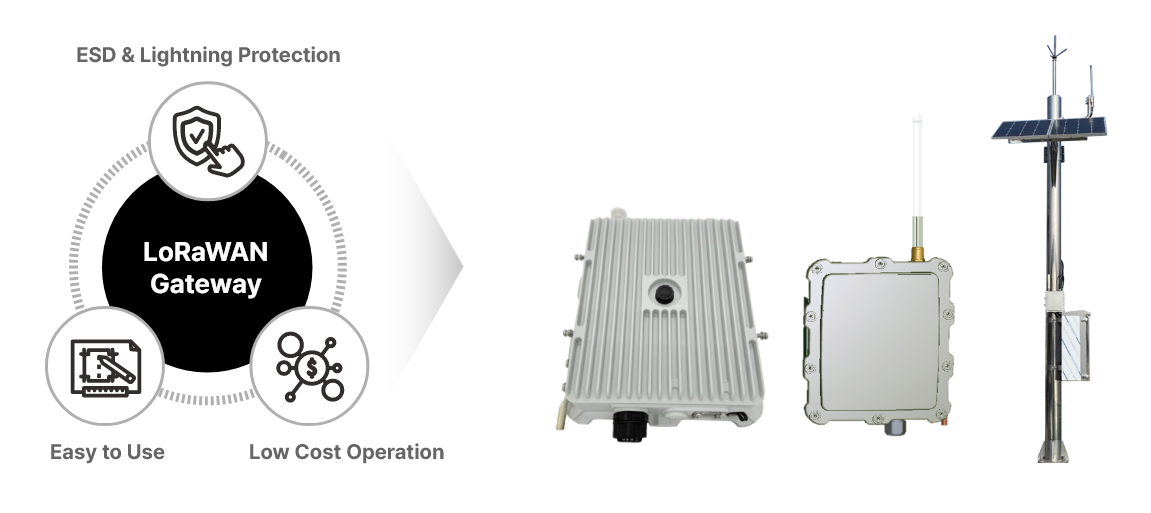

IoT Total Solution LoRaWAN Gateway

DT’s LoRaWAN gateway is the core infrastructure that enables seamless connectivity between IoT sensors and the network

Enhancing IoT efficiency and integration through reliable multi-directional data collection and cloud transmission, while fortifying network security to enable a more dependable IoT ecosystem

Item	Specification
Computing	1.9GHz quad core Cortex-A55 CPU 2GB LPDDR4, 16GB eMMC 5.1
Frequency	KR920 (917MHz ~ 923.5MHz)
Tx Power	23 dBm
Rx Sensitivity	Up to -140dBm (BW:125kHz, SF:12)
LoRa Channel	8CH
Class	A/B/C
Data Rate	0.3kbps ~ 5kbps
Encryption	AES128
Ethernet	1 x RJ45 LAN/WAN
Power Supply	PoE (IEEE 802.3 af)
Operating Temp.	-30˚C ~ +60˚C
Dimension	180 x 240 x 60mm
Antenna	Max Gain 4dBi Outdoor Antenna
Enclosure	IP67, Aluminum and plastic

Encrypted and Secure Data Transfer

End-to-end encryption compliant with AES 128 standards
Securely protects sensitive data in IoT applications

Cost-Efficient Performance

Delivering cost-efficient IoT solutions across the entire lifecycle — where exceptional performance meets reasonable pricing

Zero-Touch Provisioning

With user-friendly setup and remote management, deploying and operating IoT has never been easier
Seamless integration with major platforms enables rapid network deployment,
saving time and costs while enhancing operational efficiency

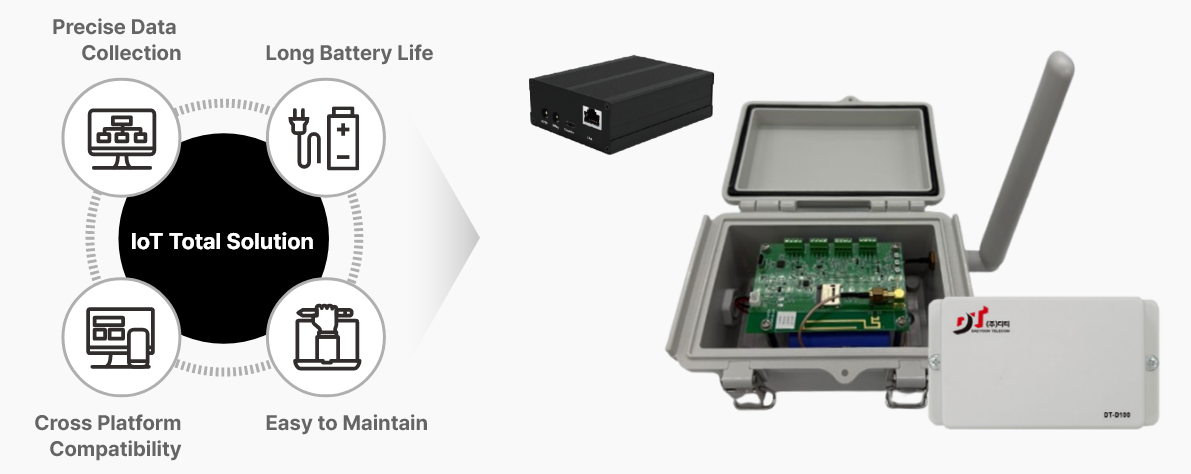

IoT Total Solution LoRa Devices & Sensors

DT’s LoRa Device combines multiple functions into one, offering easy scalability and excellent battery efficiency to create a sustainable IoT environment

DT’s LoRaWAN® devices collect a wide range of environmental information in real time — including temperature, motion, air quality, and equipment status — and can be easily installed both indoors and outdoors. With reliable sensor data, they enable faster, smarter decision-making, from asset tracking to facility operation improvements

Enhancing Operational Efficiency and Reducing Costs

Provides real-time data to reduce operational waste and prevent costly issues in advance
Supports the creation of new revenue opportunities across all industries

Outstanding Performance

Engineered to deliver precision, reliability, and lasting performance
Reliable operation in the harshest environments, with accurate data collection and secure transmission

IoT Sensor Solution

DT LoRaWAN® wireless sensors are the optimal solution for the IoT industry, based on the LoRaWAN wireless standard

Engineered for long-range communication, low cost, and extended battery life, DT’s LoRaWAN wireless IoT sensors feature an open architecture for flexible integration and a web-based console for seamless provisioning, monitoring, and configuration of field devices. Providing real-time visibility into critical asset data, they empower instant situational awareness and faster decision-making

Open/Close Detection Sensor

ToF Laser: Non-contact, precise
low-maintenance

Landslide Detection Sensor

Strain Gauge
Slope movement
Ground displacement
Soil moisture

Water Level Sensor

Ultrasonic level sensor:
28–750 cm range

Fire Alarm Sensor

Wireless heat & smoke
detection (≤10 m)

Hazardous Gas Sensor

Multi-gas alerts: CO, CO₂, H₂S, CH₄

Temperature & Humidity Sensor

Temp & humidity monitoring indoor/outdoor ready

Light Control Switch

Remote streetlight control SSR/SMPS, magnetic switch

Limit Switch

Waterproof angle sensor for open/close detection

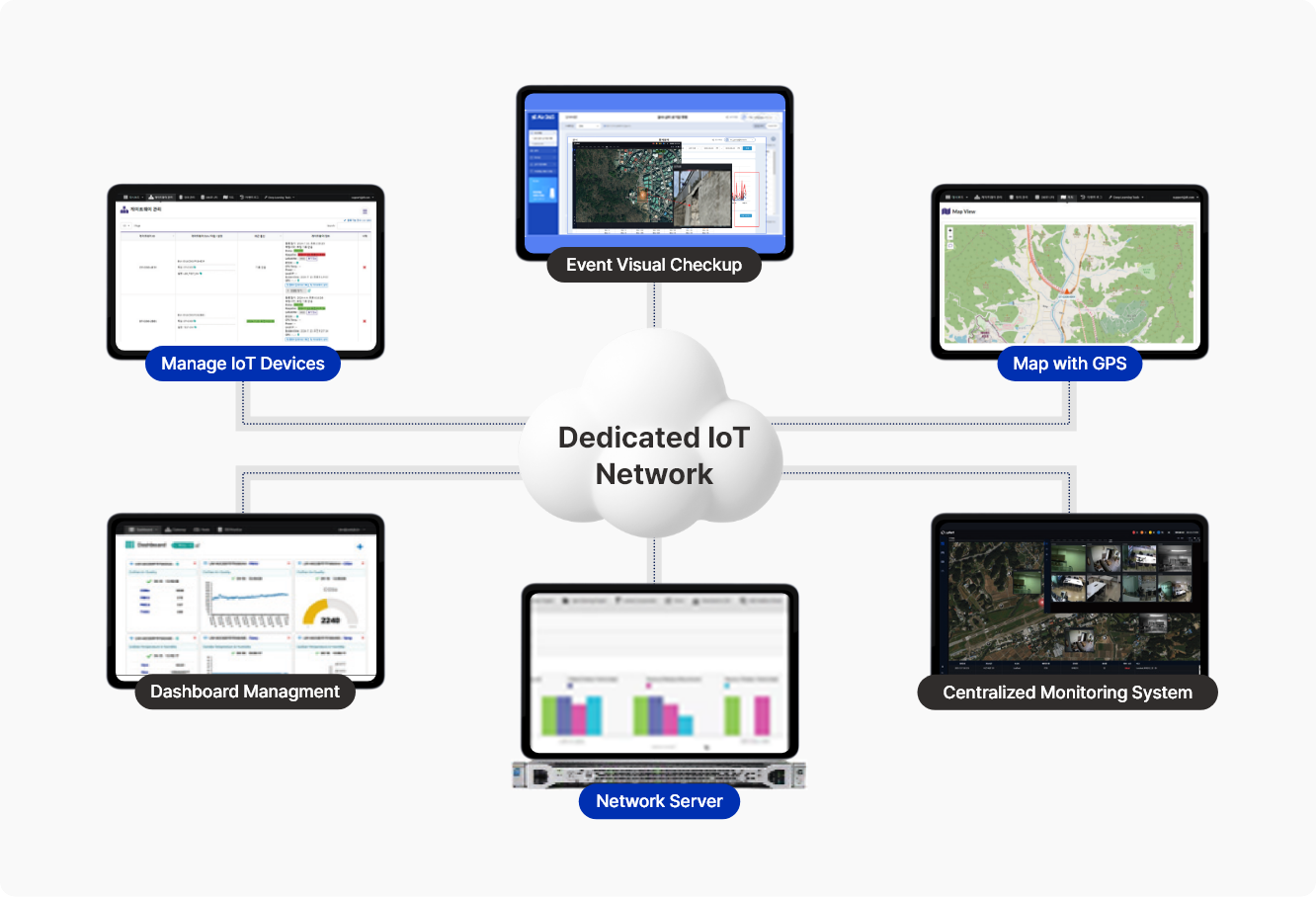

Network Server & Intelligent Integrated Management System

An integrated network platform based on a private IoT network, providing a single interface system to manage gateways, sensors, devices, applications, and users all at once.

The DT Network Server ensures secure data communication and device authentication with 128-bit AES encryption and message integrity verification. It enhances network efficiency through duplicate message elimination and automatic optimal gateway selection.

Additionally, it automates and optimizes the entire process from device connection to data delivery with features such as Adaptive Data Rate (ADR), device address verification, Join message handling, and MAC command responses.

DT Network Server Solution

Provides integrated management of gateways, end devices, applications, and users across
the entire LoRaWAN network
Reliably supports the operation of thousands of gateways and millions of devices, offering high reliability and customized features optimized for diverse deployment environments

DT GIS-Based Intelligent Control System

A location-based IoT control platform that collects real-time data as needed by users and monitors on-site situations through CCTV integration, enabling rapid response to events
